802.3at Active Gigabit PoE Injector Safe 4port PoE Patch Panel Class 4 For Cisco, Aruba and IP Camera 48V 56V PoE devices

12.570 BHD

356 in stock

SKU: 32881282695 Category:
  • Brand Name: zhangqing
  • Certification: CE,FCC
  • Origin: CN(Origin)
  • Model Number: ZQPOEATGI004
  • PoE Method: Active Mode A: 1/2-3/6
  • Operating temperature range: 0 to 50 deg C
  • Support: 802.3at class 0, 1, 2, 3, 4
  • Item Dimensions: 4 x 8 x 1.5 in
  • Data in Connects: PC/HUB/Switch
  • Number of Ports: 4 port Active Class 4
  • Connectivity Technology: ethernet, wi-fi, usb
  • Data rate: 10/100/1000Mbps
  • Certification: CE/ROHS/FCC
  • Warranty: 12months

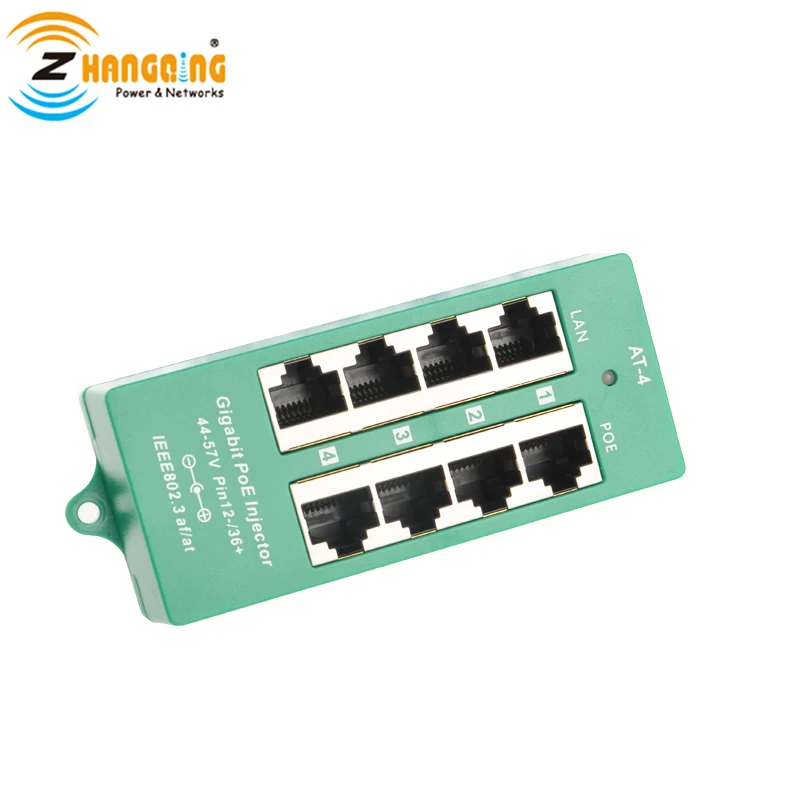

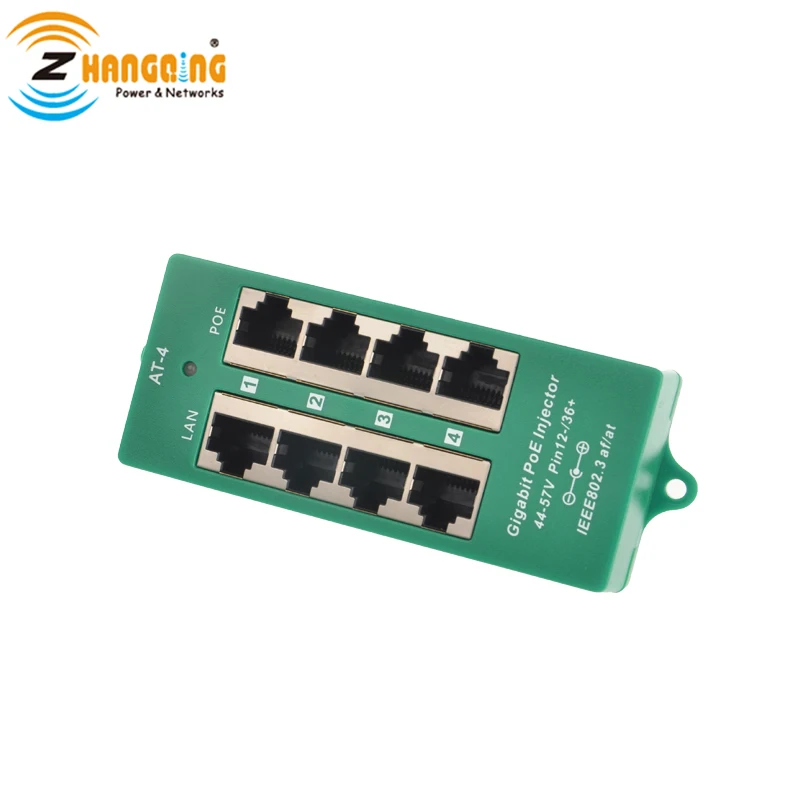

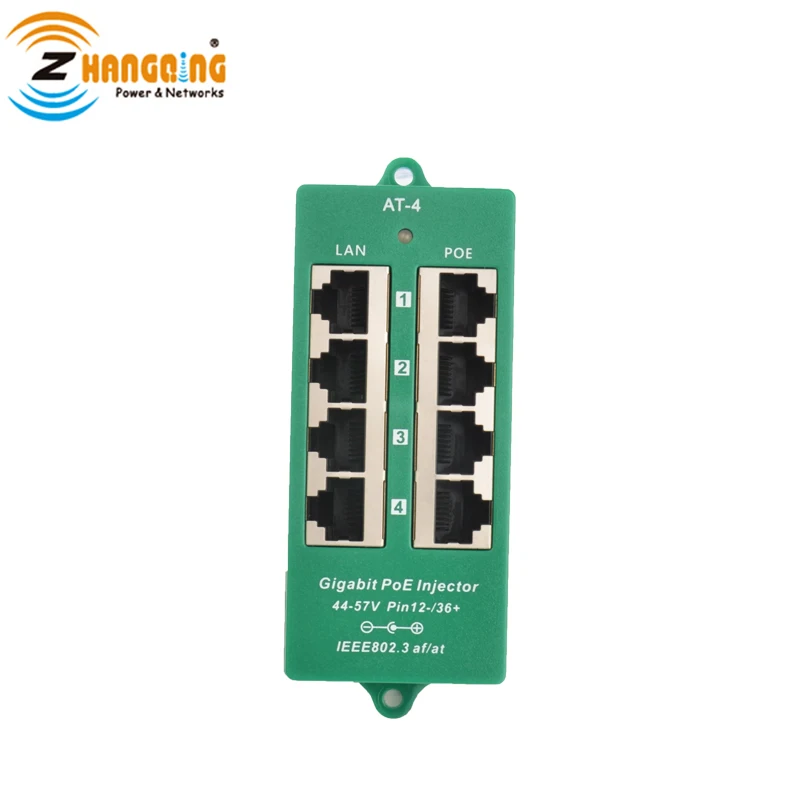

4 port Gigabit Active PoE Injector

Auto negotiating injector PoE Patch Panel

Gigabit Active 4port PoE Injector Mode A without power supply

Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.

Save big on network upgrades and device installations Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

Active PoE means the right power at the right time . An active PoE injector negotiates with the powered device to deliver the voltage needed, so there are no concerns about accidentally burning out lower powered or non-PoE devices. Power is only added to the data cable when an 802.3af or 802.3at device is connected.

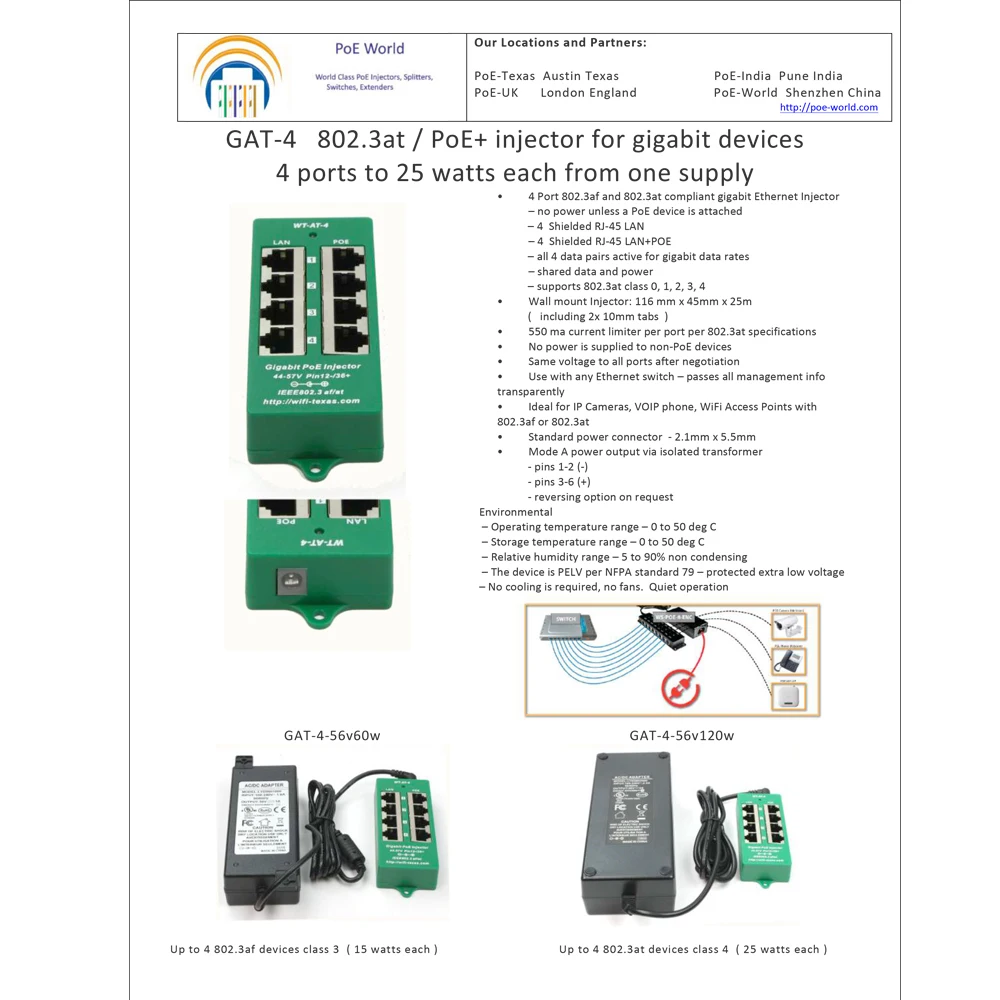

Specification of PoE injector

• 4 Port 802.3af and 802.3at compliant gigabit Ethernet Injector
– no power unless a PoE device is attached
– 4 Shielded RJ-45 LAN
– 4 Shielded RJ-45 LAN+POE
– all 4 data pairs active for gigabit data rates
– shared data and power
– supports 802.3at class 0, 1, 2, 3, 4
• Wall mount Injector: 116 mm x 45mm x 25m
• 550 ma current limiter per port per 802.3at specifications
• No power is supplied to non-PoE devices
• Same voltage to all ports after negotiation
• Use with any Ethernet switch – passes all management info
transparently
• Ideal for IP Cameras, VOIP phone, WiFi Access Points with
802.3af or 802.3at
• Standard power connector – 2.1mm x 5.5mm
• Mode A power output via isolated transformer
– pins 1-2 (-)
– pins 3-6 (+)
– reversing option on request

Environment of PoE injector

– Operating temperature range – 0 to 50 deg C

– Storage temperature range – 0 to 50 deg C
– Relative humidity range – 5 to 90% non condensing
– The device is PELV per NFPA standard 79 – protected extra low voltage
– No cooling is required, no fans. Quiet operation

Applications of poe injector
• WiFi Access points like Cisco, Meraki, Aruba 802.11ac
• IP Cameras like Hikvision
• any 802.3af or 802.3at Device
• USB, 5v and 12v , non-poe devices – please see our active splitter

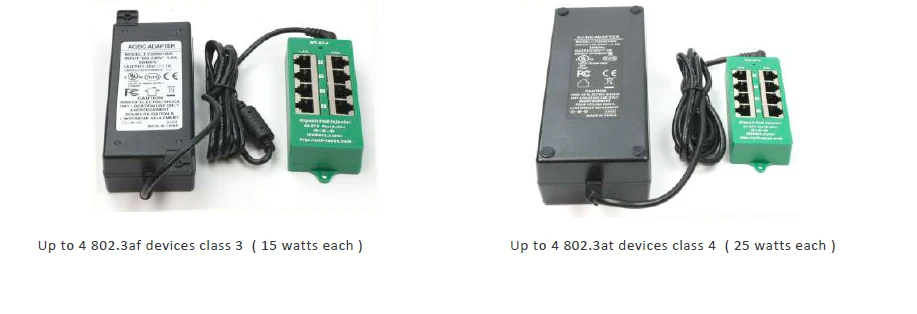

        GPOE-48V 60W              GPOE-4-56V 120W

These devices provide power and data in the same Ethernet cable using pins 1,2 and 3,6. Devices receive the 56V only if needed – total of all devices is 60 watts. Check device specs for power needs, it is under 4 watts for most Phones, other devices need up to 25 watts, add up the total for t 60 watts, 120 watts also available.

Product Show

Add gigabit PoE to any Switch

• Mix 10/100 and gigabit data rate and power on the same cable
• For 4 devices with 60 watts total power
• Power 802.3at devices
• 4 data in, 4 Data + PoE out
• This is not a switch – use it to add PoE to any switch or router
• Extend power to 328 ft or 100 meters
• Power is off until a compatible device is connected
